Column Internals

Mass-transfer and distribution hardware selected for capacity, efficiency, turndown and fouling behavior.

Bubble-cap tray panel for a process column

COLUMN INTERNALS

Tray and Valve Configurations

Representative stainless-steel internals used for vapor–liquid contacting. Final tray type, spacing, metallurgy and open area are selected from the hydraulic design and service conditions.

Bubble-cap tray panel — **Bubble-Cap Tray Panel**Positive vapor sealing and broad turndown for services where stable contacting is required.

Valve tray panel — **Valve Tray Panel**Valve openings adapt vapor area to operating load while maintaining efficient liquid contact.

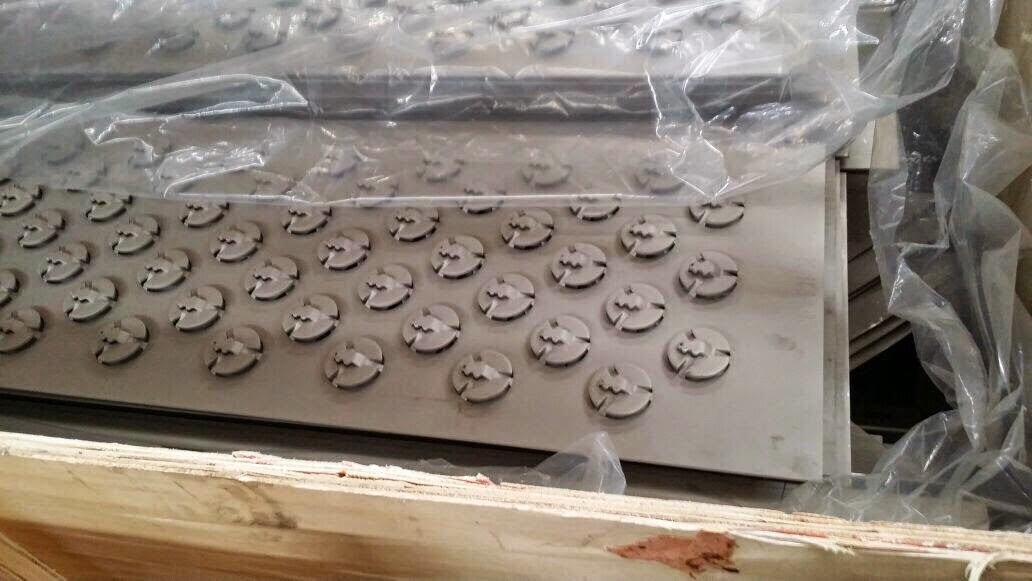

High-capacity valve tray panel — **High-Capacity Valve Tray**Multi-path valve geometry developed for capacity, pressure-drop and entrainment control.

PROCESS & OPERATING PHILOSOPHY

Vapor/liquid contacting, distribution, collection, support and entrainment control. The operating sequence, recycle paths, start-up/shutdown cases and normal/turndown behavior are defined before equipment finalization.

MAIN EQUIPMENT & PACKAGE LIMITS

Valve/sieve/bubble-cap trays, structured/random packing, distributors, collectors and demisters. Materials, design margins, maintainability, isolation, access, lifting and spare philosophy are coordinated with the approved operating cases.

CRITICAL DESIGN INPUTS

Design/operating cases, fluid properties, corrosion allowance, materials, nozzle loads, wind/seismic data, transport limits, insulation and maintenance clearances.

ENGINEERING DELIVERABLES

Hydraulic calculations, tray/packing layout, mechanical details and installation procedure. The package also includes line/equipment lists, relief and utility summaries, layouts or 3D interfaces, vendor-document requirements, inspection plans and commissioning inputs as applicable.

AUTOMATION, SAFETY & HSE

Code-compliant relief interfaces, access and lifting provisions, inspection hold points, material traceability, qualified welding, NDE and pressure/leak testing.

APPLICATIONS & PERFORMANCE BASIS

Distillation, absorption, stripping, extraction and scrubbing columns. Capacity, product quality, consumption and emissions commitments are confirmed only after the representative feed and project Design Basis are approved.

CODES, STANDARDS & QUALITY BASIS

Vendor standards, applicable API guidance and project specifications. The contractual code basis is selected by destination and client specification. ASME/API/TEMA, EN/DIN and GOST/EAC requirements are not mixed without an approved code-equivalency and authority review.

CONTRACTUAL CODE BASIS

Vendor standards, applicable API guidance and project specifications.
